VyOS on Lanner

Lanner Electronics Inc. is a world-leading hardware provider in the design, engineering, and manufacturing services for advanced network appliances and rugged industrial computers. With more than 40 years of hardware manufacturing experience, Lanner provides a wide selection of reliable computing platforms with best-in-class components, quality, and performance.

Lanner creates customized network appliances for client applications with managed manufacturing processes thanks to its in-house design and manufacturing services, covering color of chassis, height, modular or fixed port, BIOS, IPMI, acceleration cards, special certification, and additional I/O interface. Lanner’s building block design concept can fulfill all your requirements.

Amplify your network security appliances, embedded systems, and industrial computers by the installation of an open-source OS with a CLI provided by VyOS. As a result, you get secure, reliable, and centrally managed appliances for Edge Data Centers, Edge Security, network appliances, and much more.

Standard routing protocols (including OSPF and BGP) make an edge router a popular use case for VyOS. Multiple BGP features, including 32-bit ASNs, standard, large, and extended communities, AS override, and more provide excellent interoperability. High availability of VRRP for both IPv4 and IPv6, add your custom health checks and scripts.

Built-in configuration archiving, versioning, and restoration, as well as image-based upgrading improves system management and reliability.

Solution Architecture

Firewall
Use VyOS to separate networks: your DMZ, Guest and Client Network using zone-based, or addresses-based stateless and stateful built-in firewalls. Supported NAT and NAT helpers for special traffic types.
Simplicity
Build the same VyOS box with a unified interface for every task: setting up a firewall, implementing DHCP, DNS, QoS, VPN gateways, IPv6, or a Proxy-Server for your clients. Forget about “reverse engineering” confusing graphical interfaces or scrubbing through verbose configuration files for a poorly named key. It’s an idea of the direct simplicity that VyOS provides.
Routing
Establish Policy-Based-Routing to route your Guest Network to the Internet, based on its source, and avoid the access to internal networks. QoS and policy-based routing allows you to ensure optimal handling of the traffic flow.

Integration of Lanner hardware and VyOS OS delivers complete systems that are ready for end-users. The end product development cycle is supported by providing extensive integration services – from the hardware level to the BIOS/boot code, drivers, APIs, and middleware; operating system and the customer application. Cooperation of Lanner and VyOS allows achieving significant reductions in development costs, integration costs, support costs, and time to market.

Here below are three groups of Lanner appliances with different levels of functionality that have been chosen for testing by VyOS engineers: Entry (basic) Level, Advanced (middle) Level, and Professional Level. The compatibility of VyOS OS with Lanner hardware has been proved by the highest performance on all supported devices.

Choose the appliance according to your business requirements and functionality expectations.

Fanless SFF Desktop Network Security Appliances for SME Edge Security

Powered by Intel® Atom® C3000 (codenamed Denverton) CPU, the appliances feature robust performance and Intel’s QuickAssist Technology, offering cryptographic acceleration and commercial-grade LAN functions in compact desktop form factor. It is the ideal fanless SFF desktop network security appliance for managing edge security at small and medium enterprises.

Compact x86 Desktop Network Appliances with Dual-core or Quad-core Intel® Celeron SoC CPU

Compact desktop form factor, ideal for branch office and retail environments. As a wireless security router for such an environment, which is built in an x86 open architecture for flexibility to run various software. The platform is empowered by Intel Dual-core or Quad-core Intel® Celeron SoC CPU (Codename Elkhart Lake) to deliver the required performance and power efficiency in an edge security deployment. It provides 4x 2.5GbE RJ45 (Optional Support For 1x PoE+), 1x Console Port, 1x USB 3.0, 1x Display Port, 4x Antenna Connectors (2x Front & 2x Rear), 1x Mini-PCIe, 1x M.2, 2x Nano SIM For WiFi/5G/LTE (for wireless communication). Memory wise, the platform supports DDR4 3200 SO-DIMM up to 32GB.

Virtualization-optimized Network Appliances for vCPE, uCPE, SD-WAN and SD-Security

Rackmount network appliances with virtualization optimized design and Intel® Atom™ C3958, C3758, or C3558 CPU (codenamed Denverton). Offering up to 16 cores of processing prowess, 10G interface for SFP+, SR-IOV support, Intel® AES-NI, and Intel® QuickAssist Technology, running at 20G, making it the ideal solution for vCPE, uCPE, SD-WAN and SD-Security on Intel® architecture servers.

Improve Your Lanner Infrastructure With VyOS

Deployment

You will need to utilize the bare-metal installation method to deploy VyOS on Lanner hardware. The OS is easily upgradeable once installed.

VyOS has developed the ISO images you can easily deploy on an available Lanner appliance and upgrade it up to the latest version upon installation. Choosing the version is also fully in your hands.

Sentrium will provide technical support for VyOS ISO images created to be launched/deployed on the provided specific hardware model.

GET FREE TRIAL TODAY

Still not 100% sure about VyOS? Give it a shot and let the hands-on experience speak for itself!

Run VyOS without a hiccup on compatible Lanner hardware

Lanner Electronics Inc. NCA-5540
Lanner Electronics Inc. NCA-1513E
Lanner Electronics Inc. NCA-1040SE

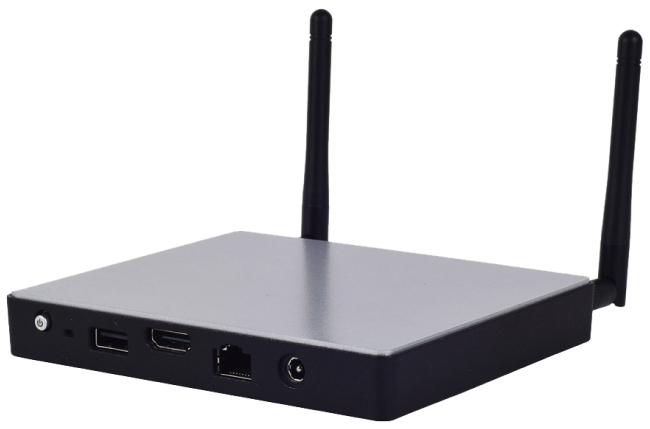

Lanner Electronics Inc. NCA-1020B

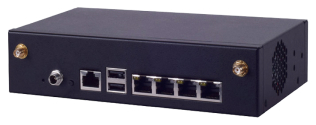

Lanner Electronics Inc. NCA-1210B

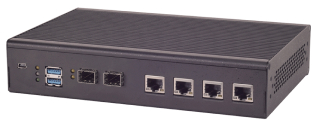

Lanner Electronics Inc. NCA-1510C
Lanner Electronics Inc. NCA-2510B

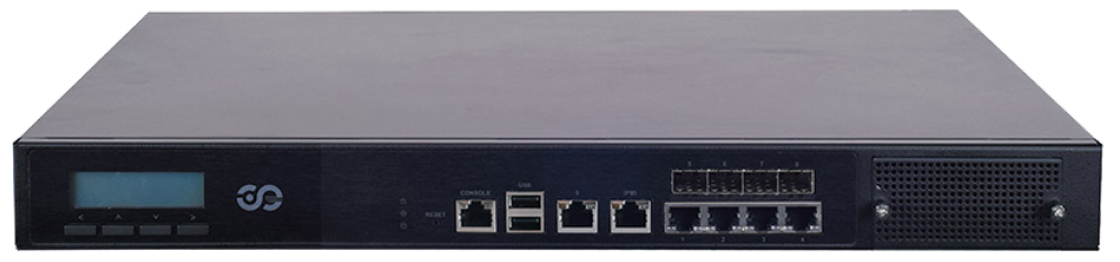

Lanner Electronics Inc. NCA-2512B

The “Why”

We make sure that most common gigabit and ten gigabit Ethernet cards are supported out of the box and, since VyOS doesn’t have a per-instance licensing, you can scale your installations without incurring additional costs.

100% Open:
- Fully open-source highly customizable operation system.
- Support of a wide list of network topologies and technologies.
Scalability:
- Mass configuration of VyOS with Ansible, Saltstack, or the VyOSAPI.
- Scalable resources through hardware expandability of appliances.
Usability:
- Hardware and VyOSsystems can be managed via Lanner IPMI Module.
Secure:
- Protecting network with simple or zone-based firewall rules
- Reliable interconnection between remote sites, like clouds and physical offices, etc. with a wide list of tunnel/VPN protocols and traffic encryption.
